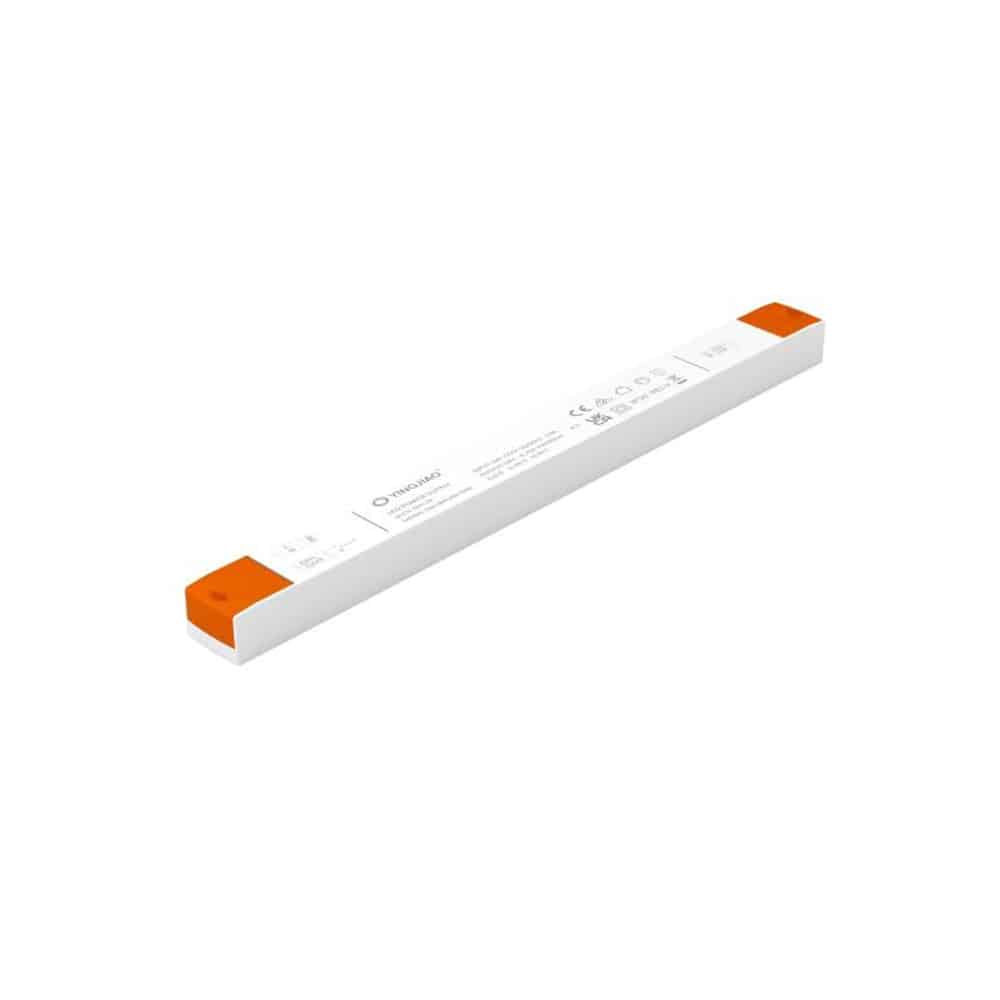

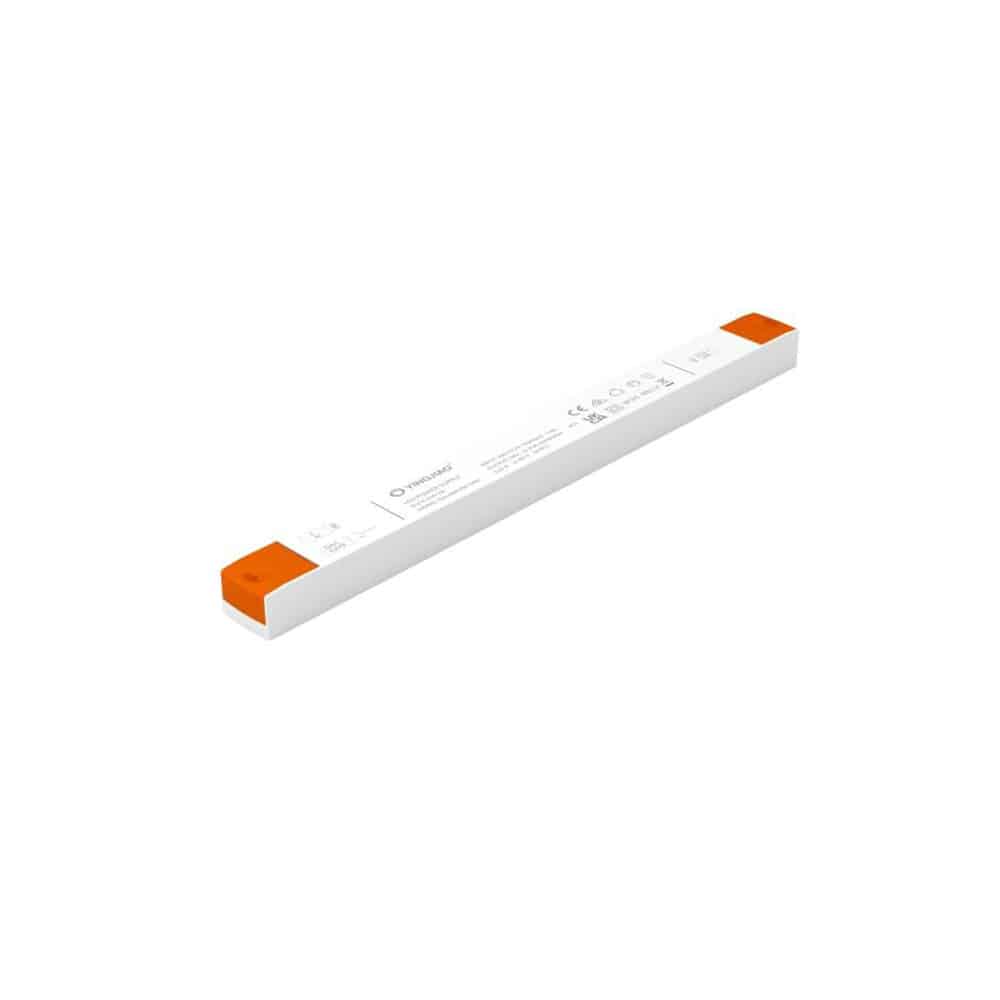

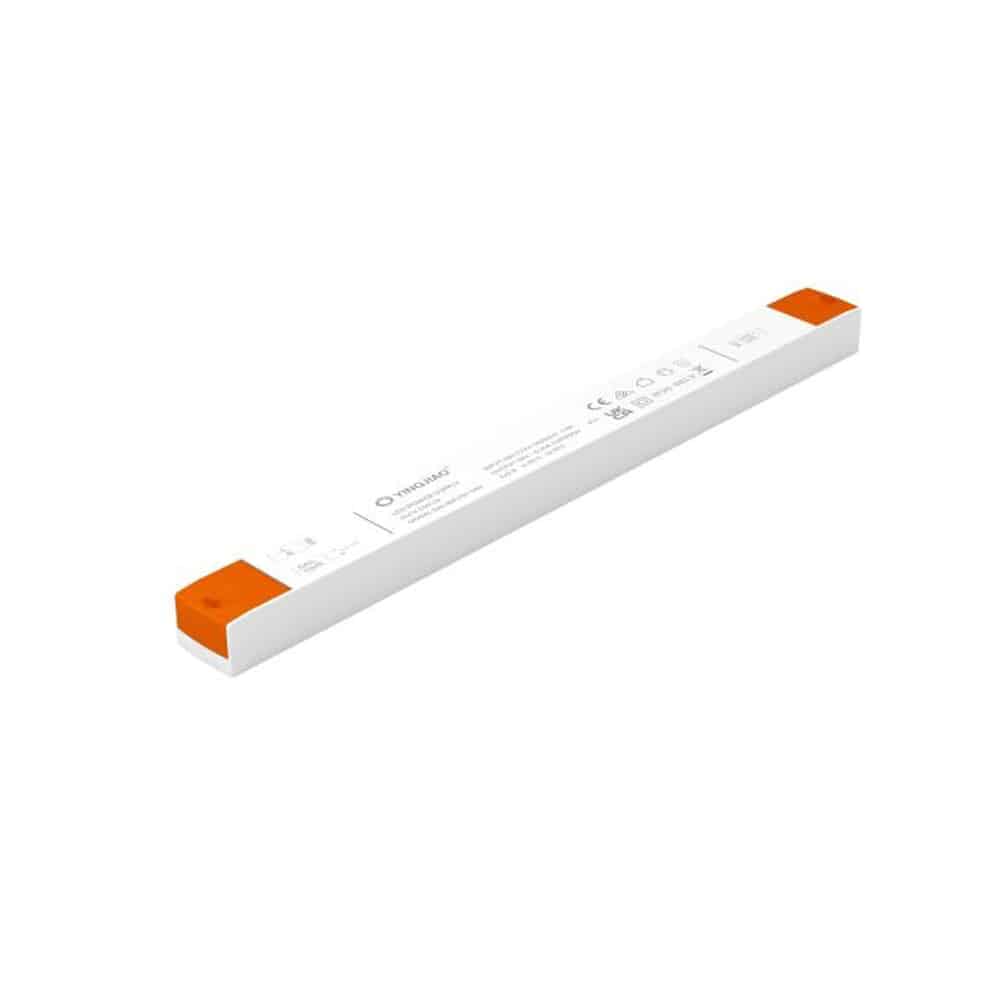

DLCV-75 Series

DALI-2&PUSH Dimming LED Power Supply

 - DALI-2& PUSH ( 2 in 1) Dimming
- Dimming range: 1-100%
- DALI-2 Certified
- Safety standard: EN61347-1,EN61347-2-13,
- UL8750+1310    CAN/CSA C22.2 No.250.13
- FCC CFR Title 47 Part 15
- EMI standard:EN55015
- EMS standard: EN61547
- ERP: EU2019/2020
- Protection:Short Circuit/Overload/Over Voltage/Over Temperature
- 100% full load burn in test
- Auto restart after remove of fault conditions
- RoHS Compliance

Constant Voltage

Model

Power

(max.)

Input

Voltage

Output Voltage

Output Current(max.)

Voltage Tolerance

Efficiency

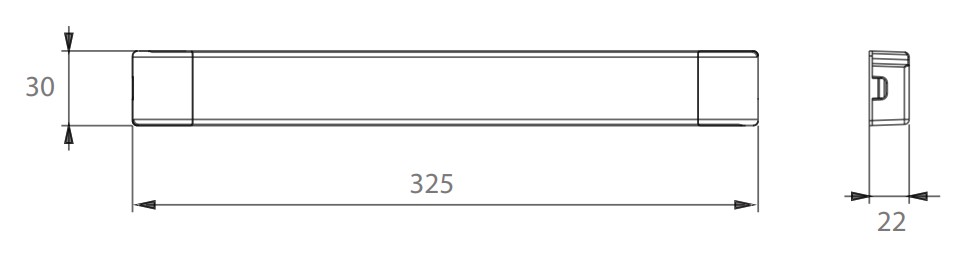

Dimension

(LxWxH)

Dimming

DLCV-75-12

75W

220-240V AC

12V

6.25A

±5%

88%

222.5×45.5×30.5mm

Dali&Push

DLCV-75-24

75W

220-240V AC

24V

3.125A

±5%

88%

222.5×45.5×30.5mm

Dali&Push

DLCV-75-36

75W

220-240V AC

36V

2.08A

±5%

88%

222.5×45.5×30.5mm

Dali&Push

DLCV-75-48

75W

220-240V AC

48V

1.56A

±5%

88%

222.5×45.5×30.5mm

Dali&Push

DLCV-75-12-V

75W

220-240V AC

12V

6.25A

±5%

88%

222.5×45.5×30.5mm

0-10V

DLCV-75-24-V

75W

220-240V AC

24V

3.125A

±5%

88%

222.5×45.5×30.5mm

0-10V

DLCV-75-36-V

75W

220-240V AC

36V

2.08A

±5%

88%

222.5×45.5×30.5mm

0-10V

DLCV-75-48-V

75W

220-240V AC

48V

1.56A

±5%

88%

222.5×45.5×30.5mm

0-10V
