- DALI-2& PUSH ( 2 in 1) Dimming
- Dimming range: 1-100%
- DALI-2 Certified
- Safety standard: EN61347-1,EN61347-2-13,
- UL8750+1310 CAN/CSA C22.2 No.250.13
- FCC CFR Title 47 Part 15
- EMI standard:EN55015
- EMS standard: EN61547
- ERP: EU2019/2020
- Protection:Short Circuit/Overload/Over Voltage/Over Temperature
- 100% full load burn in test
- Auto restart after remove of fault conditions
- RoHS Compliance
Constant Voltage
|
Model |
Power (max.) |
Input Voltage |
Output Voltage |
Output Current(max.) |
Voltage Tolerance |
Efficiency |

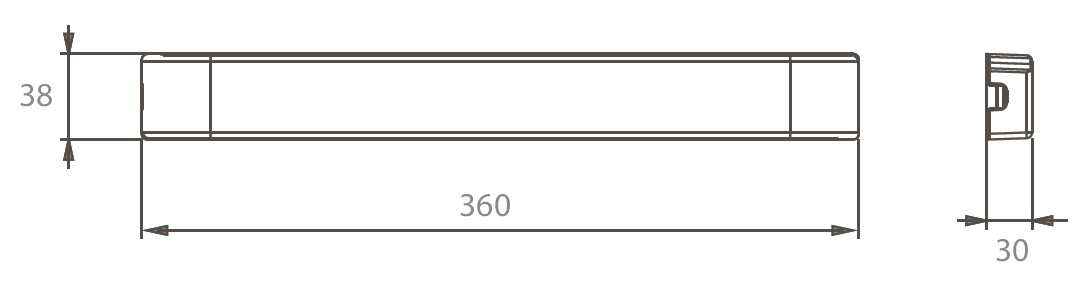

Dimension
(LxWxH) |
Dimension (LxWxH) |
|
DLCV-200-12 |
200W |
220-240V AC |
12V |
16.67A |
±5% |
94% |
325×60.5×35.5mm |
Dali&Push |
|
DLCV-200-24 |
200W |
220-240V AC |
24V |
8.33A |
±5% |
94% |
325×60.5×35.5mm |
Dali&Push |
|
DLCV-200-36 |
200W |
220-240V AC |
36V |
5.56A |
±5% |
94% |
325×60.5×35.5mm |
Dali&Push |
|
DLCV-200-48 |
200W |
220-240V AC |
48V |
4.16A |
±5% |
94% |
325×60.5×35.5mm |
Dali&Push |
|
DLCV-250-12 |
250W |
220-240V AC |
12V |
20.83A |
±5% |
94% |
325×60.5×35.5mm |
Dali&Push |
|
DLCV-250-24 |
250W |
220-240V AC |
24V |
10.4A |
±5% |
94% |
325×60.5×35.5mm |
Dali&Push |
|
DLCV-250-36 |
250W |
220-240V AC |
36V |
6.94A |
±5% |
94% |
325×60.5×35.5mm |
Dali&Push |
|
DLCV-250-48 |
250W |
220-240V AC |
48V |
5.2A |
±5% |
94% |
325×60.5×35.5mm |
Dali&Push |
