- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Dimming available
Constant Voltage
|
Model
|
Power (max.)
|
Input Voltage
|
Output Voltage
|
Output Current
(max.)
|
PF
|
Voltage Tolerance |
Efficiency
|

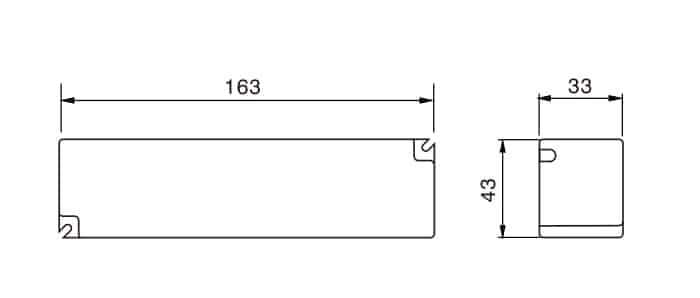

Dimension(LxWxH)
|
|
YCL80-12
|
80W
|
220-240V AC
|
12V
|
6.66A |
≥0.9
|
±5% |
90%
|
190x52x37mm
|
|
YCL80-24
|
80W
|
220-240V AC
|
24V
|
3.33A |
≥0.9
|
±5% |
92%
|
190x52x37mm
|
|
Model
|
Power (max.)
|
Input Voltage
|
Output Voltage
|
Output Current
(max.)
|
PF |
Voltage Tolerance
|
Efficiency
|
Dimension(LxWxH)
|
|
YCL80-12
|
72W
|
90-265V AC
|
12V
|
6A
|
≥0.9 |
±5%
|
90%
|
190x52x37mm
|
|
YCL80-24
|
72W
|
90-265V AC
|
24V
|
3A
|
≥0.9 |
±5%
|
92%
|
190x52x37mm
|
|
YCL80-36
|
72W
|
90-265V AC
|
36V
|
2A
|
≥0.9 |
±5%
|
92%
|
190x52x37mm
|
