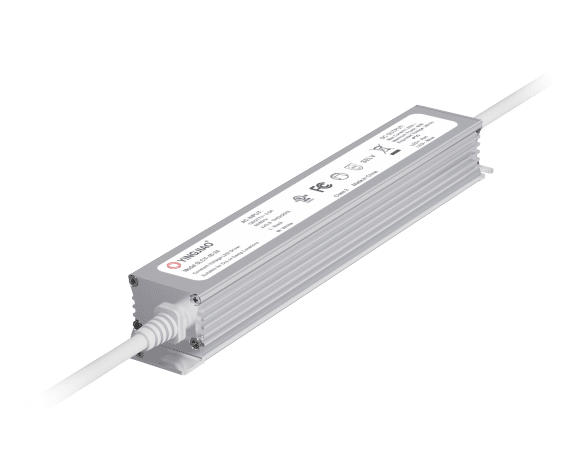

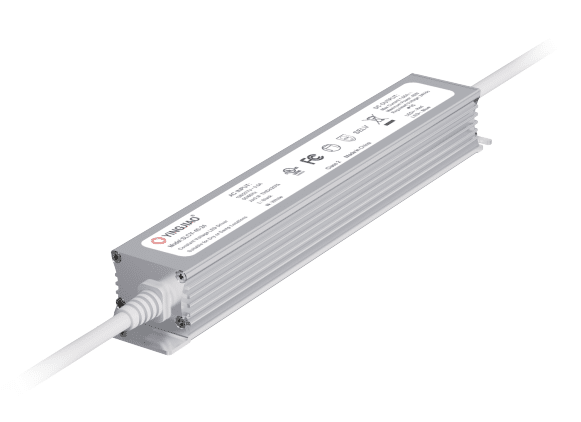

- LINEAGE Constant Voltage Drivers
- Safety standard: EN61347-1,EN61347-2-13,
- UL8750+1310 CAN/CSA C22.2 No.250.13
- FCC CFR Title 47 Part 15
- EMI standard:EN55015
- EMS standard: EN61547
- ERP: EU2019/2020
- Protection:Short Circuit/Overload/Over Voltage/Over Temperature
- 100% full load burn in test
- Auto restart after remove of fault conditions
- RoHS Compliance
- UL Class P
Constant Voltage
|
Model |
Power (max.) |
Input Voltage |
Output Voltage |
Output Current(max.) |
Voltage Tolerance |
Riple(P-P) |
Efficiency |
Dimension(LxWxH) |
|
SLCV-60-12 |
60W |
100-277V AC |
12V |
5A |
±5% |
＜1% |
88% |
144.4x24x21.1mm |
|
SLCV-60-24 |
60W |
100-277V AC |
24V |
2.5A |
±5% |
＜1% |
88% |
144.4x24x21.1mm |
|
SLCV-60-36 |
60W |
100-277V AC |
36V |
1.67A |
±5% |
＜1% |
88% |
144.4x24x21.1mm |
|
SLCV-60-48 |
60W |
100-277V AC |
48V |
1.25A |
±5% |
＜1% |
88% |
144.4x24x21.1mm |
