- DALI-2& PUSH ( 2 in 1) Dimming
- Dimming range: 1-100%
- DALI-2 Certified
- Safety standard: EN61347-1,EN61347-2-13,
- UL8750+1310 CAN/CSA C22.2 No.250.13
- FCC CFR Title 47 Part 15
- EMI standard:EN55015
- EMS standard: EN61547
- ERP: EU2019/2020
- Protection:Short Circuit/Overload/Over Voltage/Over Temperature
- 100% full load burn in test
- Auto restart after remove of fault conditions
- RoHS Compliance
Constant Voltage
|
Model |
Power (max.) |
Input Voltage |
Output Voltage |
Output Current(max.) |
Voltage Tolerance |
Riple (P-P) |
Efficiency |

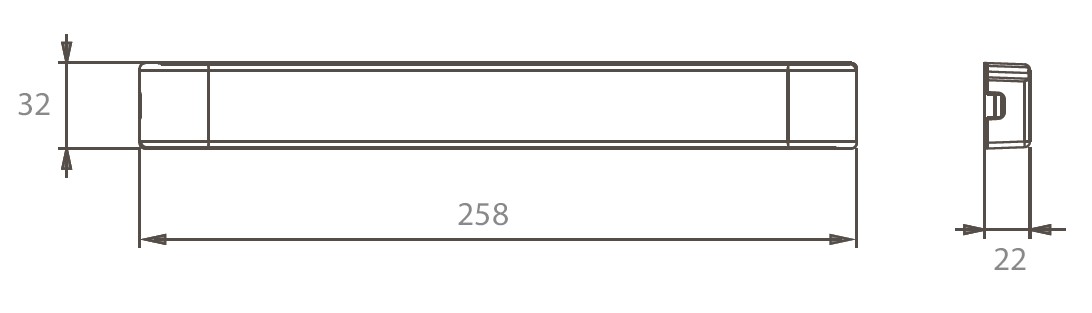

Dimension (LxWxH) |
|
DLCV-30-12 |
30W |
100-277V AC |
12V |
2.5A |
±5% |
＜1% |
88% |
258x32x22mm |
|
DLCV-30-24 |
30W |
100-277V AC |
24V |
1.25A |
±5% |
＜1% |
88% |
258x32x22mm |
|
DLCV-30-36 |
30W |
100-277V AC |
36V |
0.83A |
±5% |
＜1% |
88% |
258x32x22mm |
|
DLCV-30-48 |
30W |
100-277V AC |
48V |
0.625A |
±5% |
＜1% |
88% |
258x32x22mm |
